Clinical Examples: Finger distraction lengthening with palatal expansion clamp and intercalated bone graft

These are two cases of traumatically shortened fingers lengthened with paired palatal expansion clamps used to construct miniature progressive skeletal distraction followed by intercalary bone grafting


Click on each image for a larger picture


Case 1. This patient had an unstable small fingertip following a saw injury which resulted in loss of the central half of the distal phalanx of the small finger.
Image Image

Image Image Image

Image Image

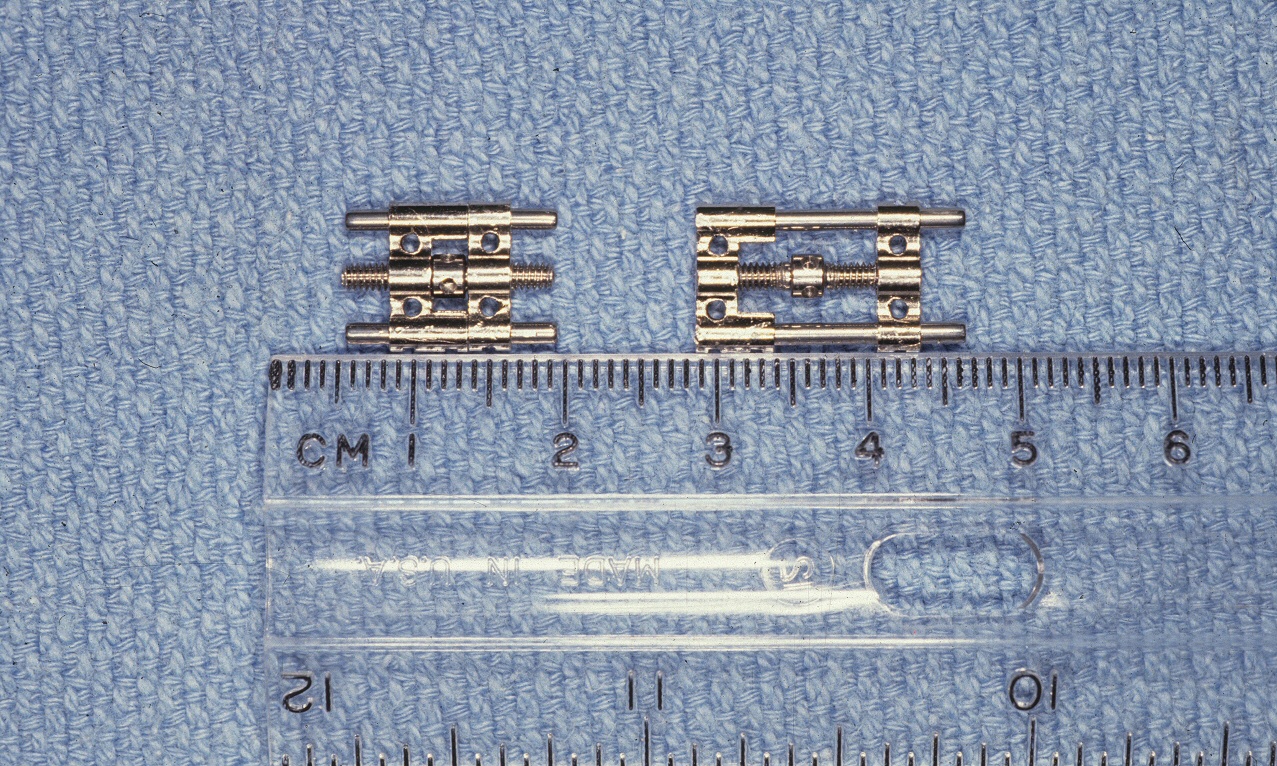

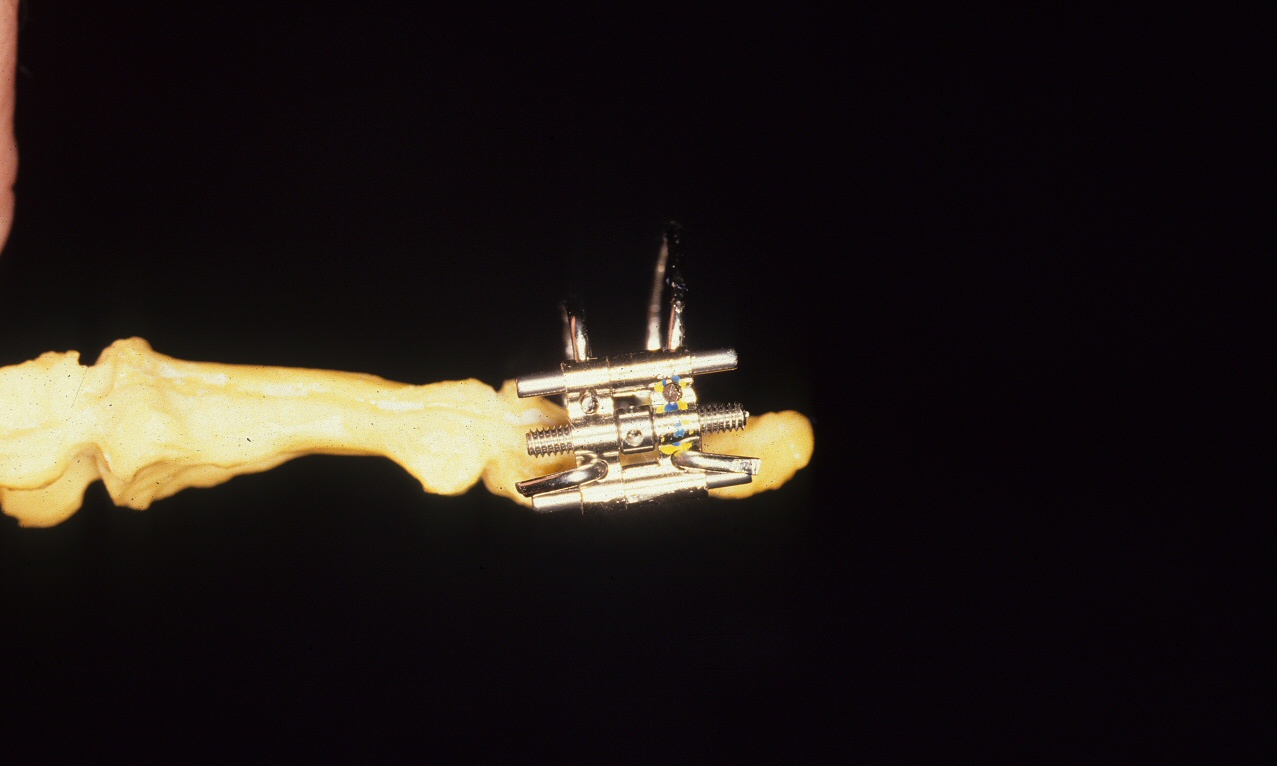

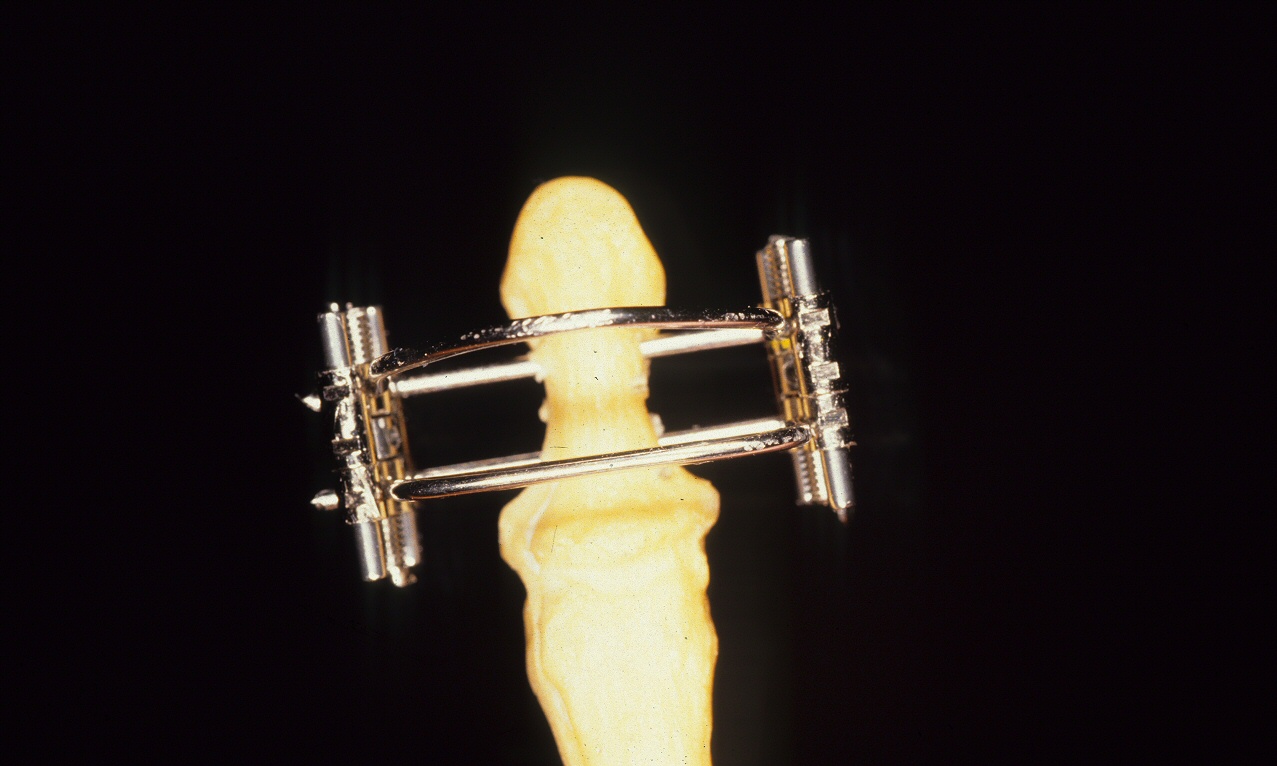

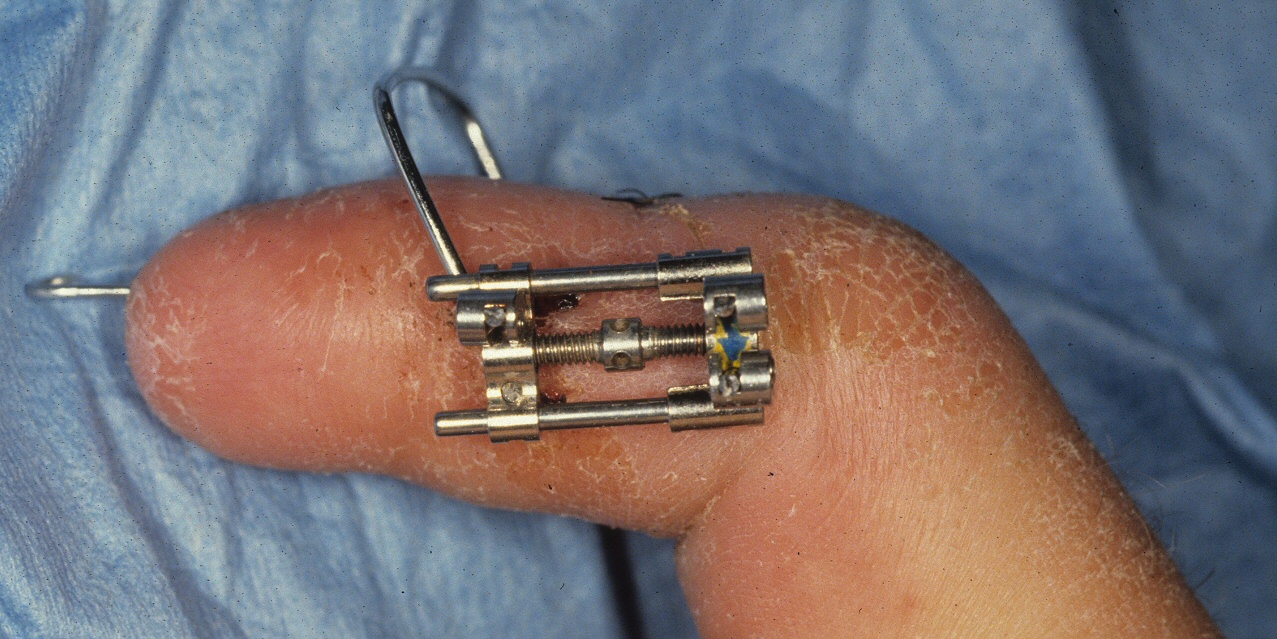

A palatal expansion clamp with a turnbuckle mechanism was used to design a progressively lengthening external fixator to restore length of the distal phalanx before reconstruction with a bone graft, here shown on a plastic sawbone model. This device is available at http://www.greatlakesortho.com and other orthodontic supplier retailers (no commercial interest).

Image Image Image

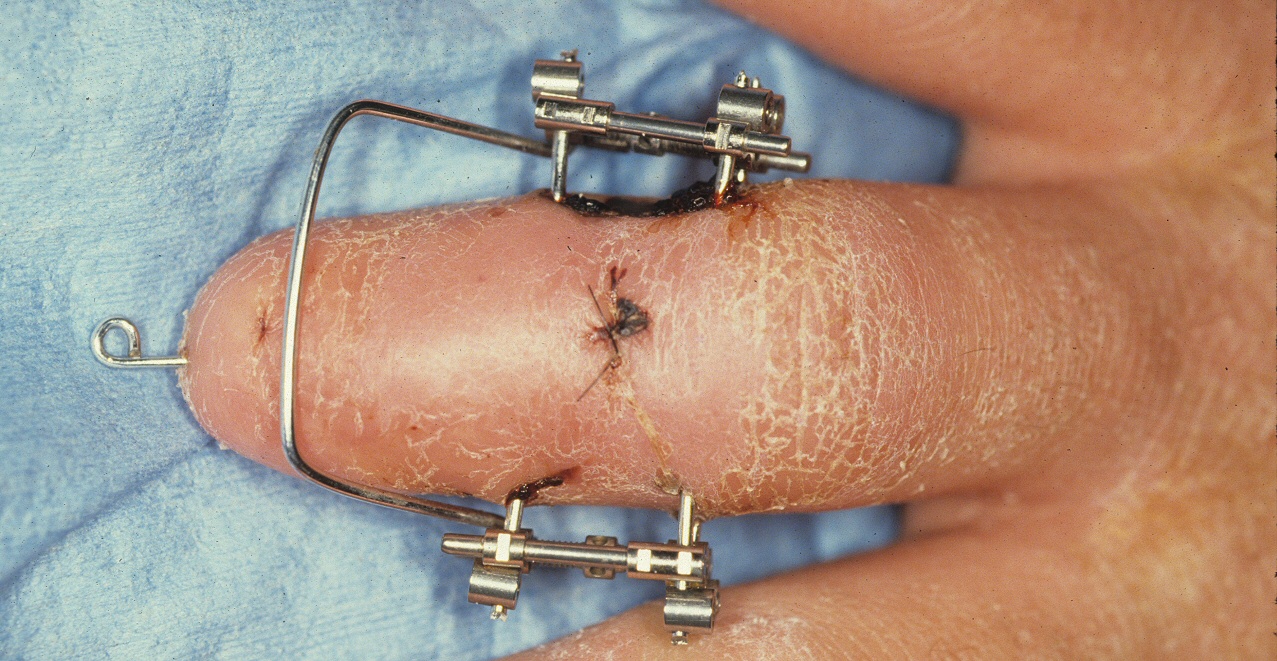

Construction of the fixator:

Image Image Image Image

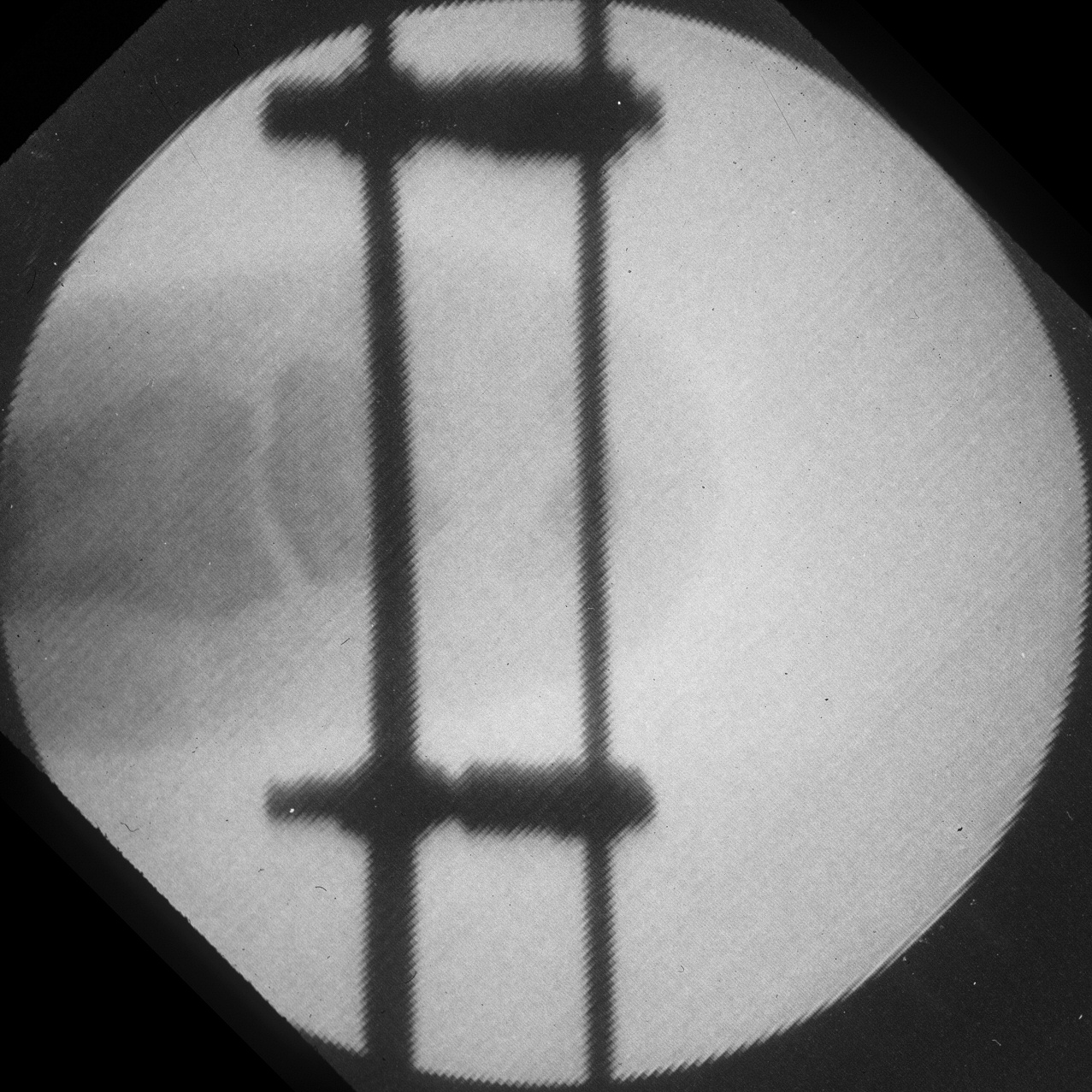

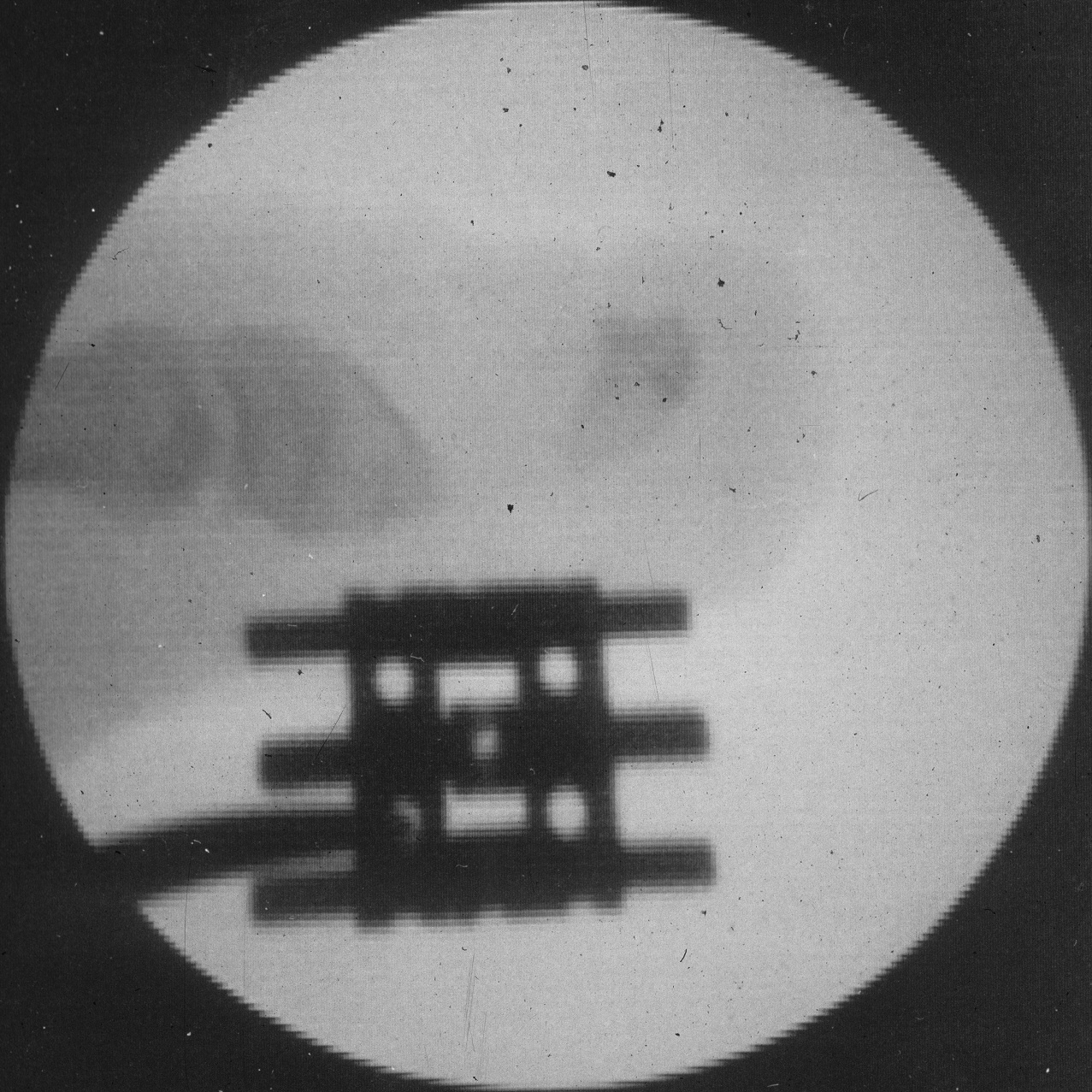

Initial position:

Image Image Image

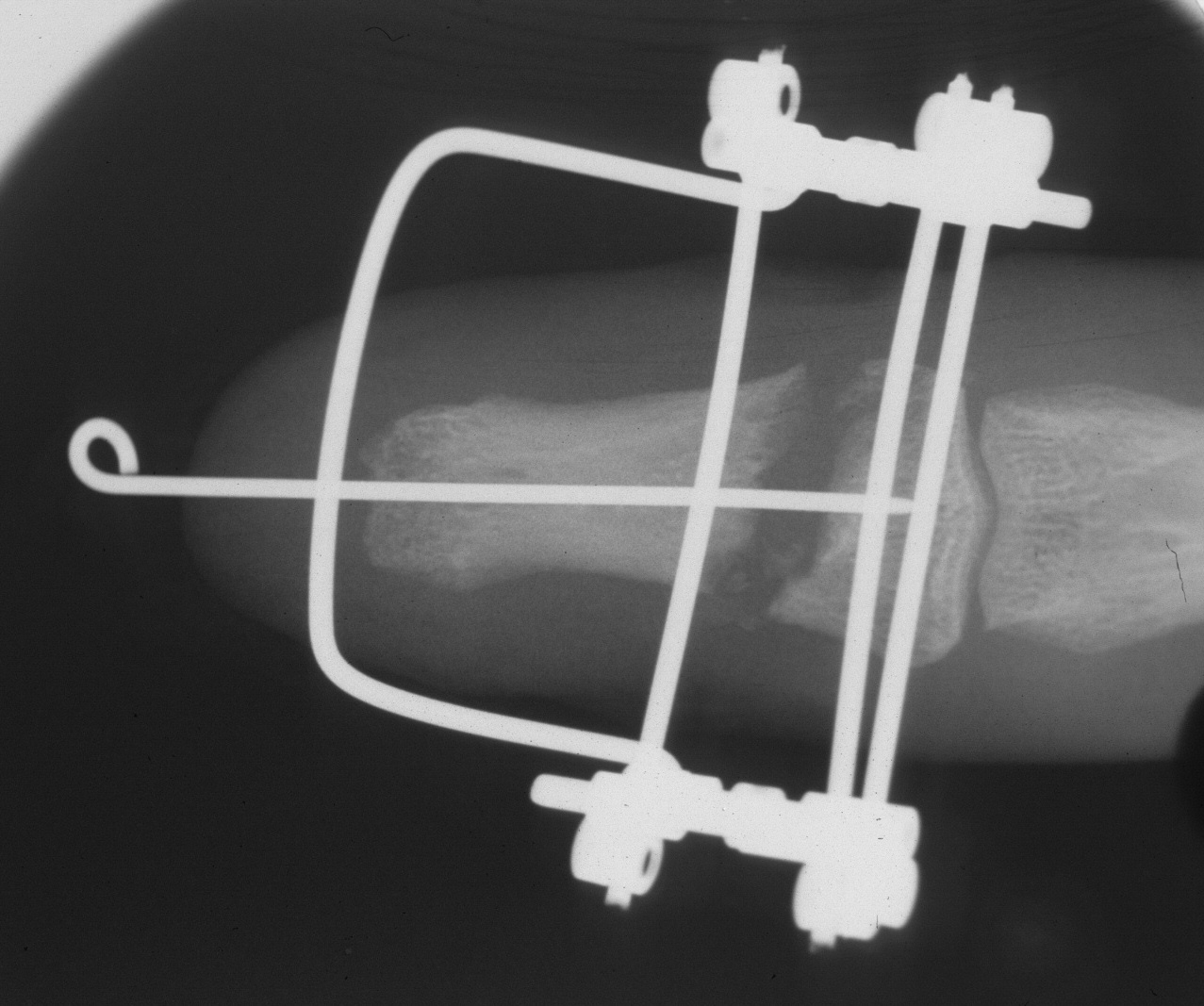

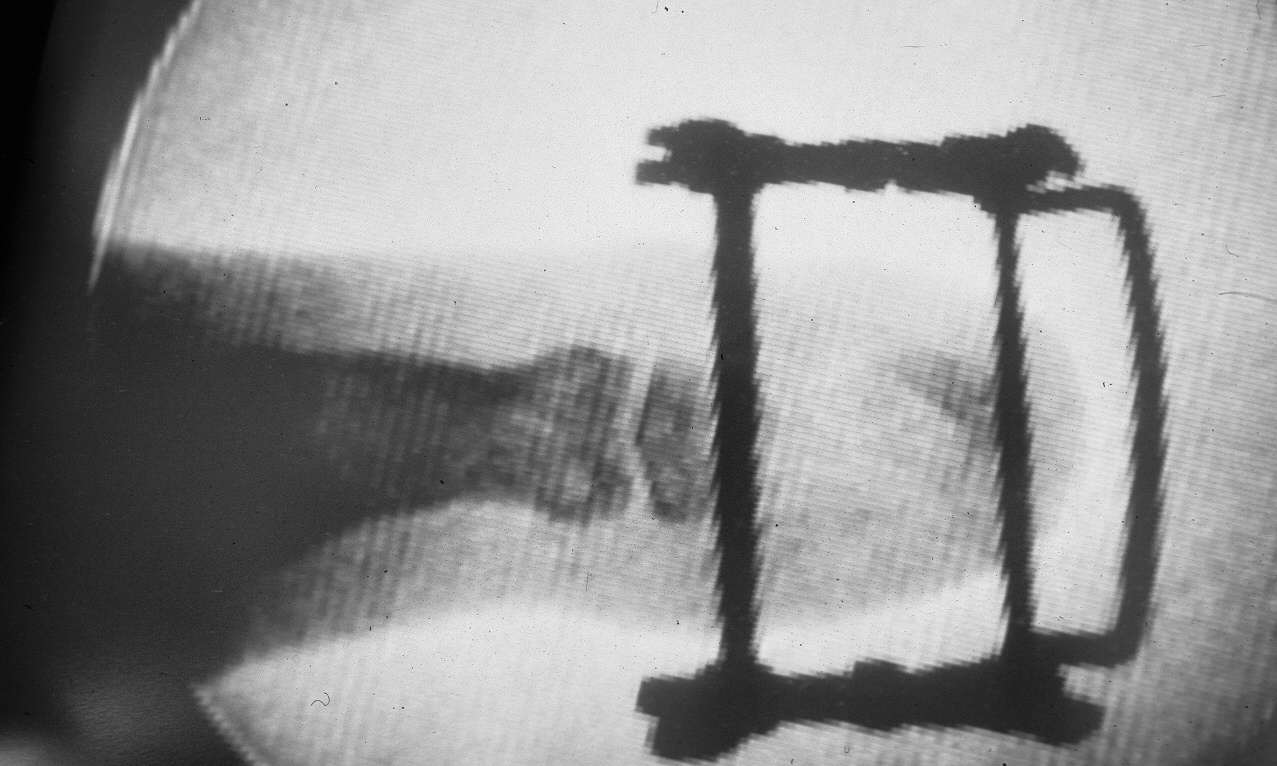

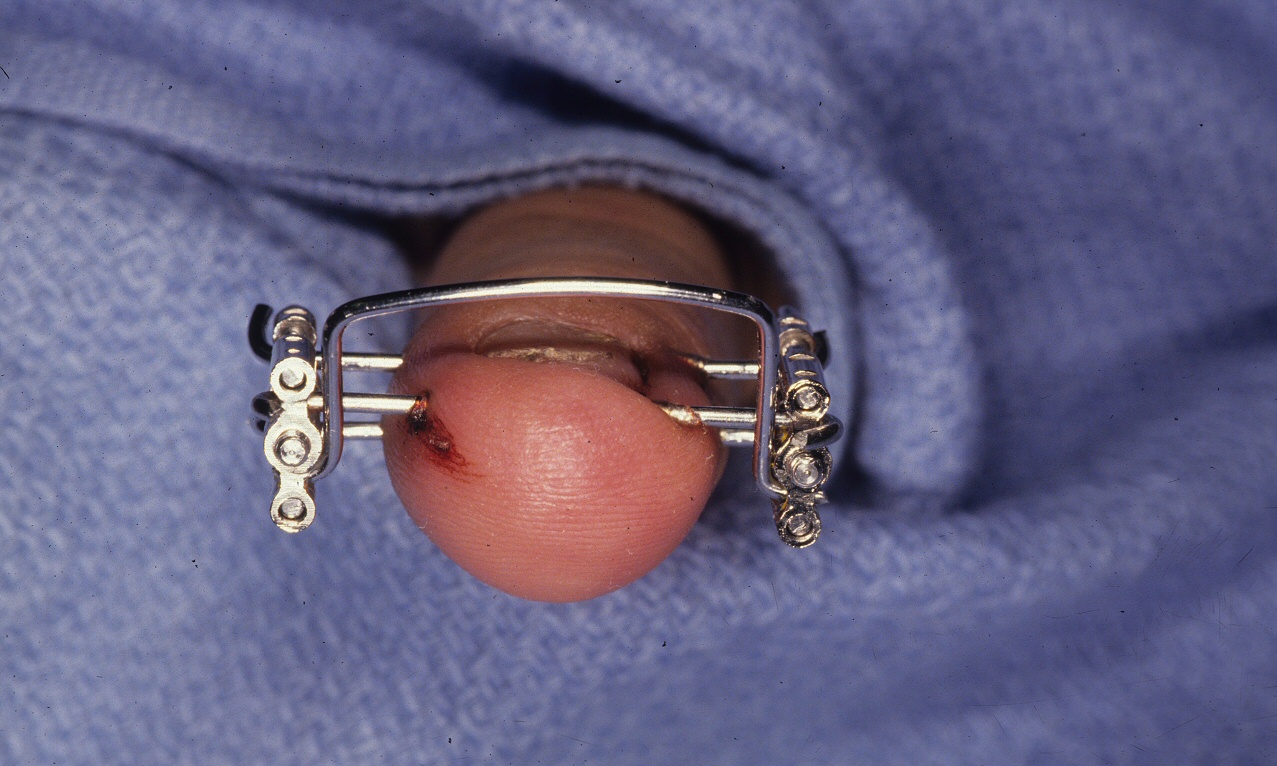

After two weeks of distraction:

Image Image Image

Bone grafting:

Image Image Image

Final result:

Image Image Image

Image Image Image

Image Image

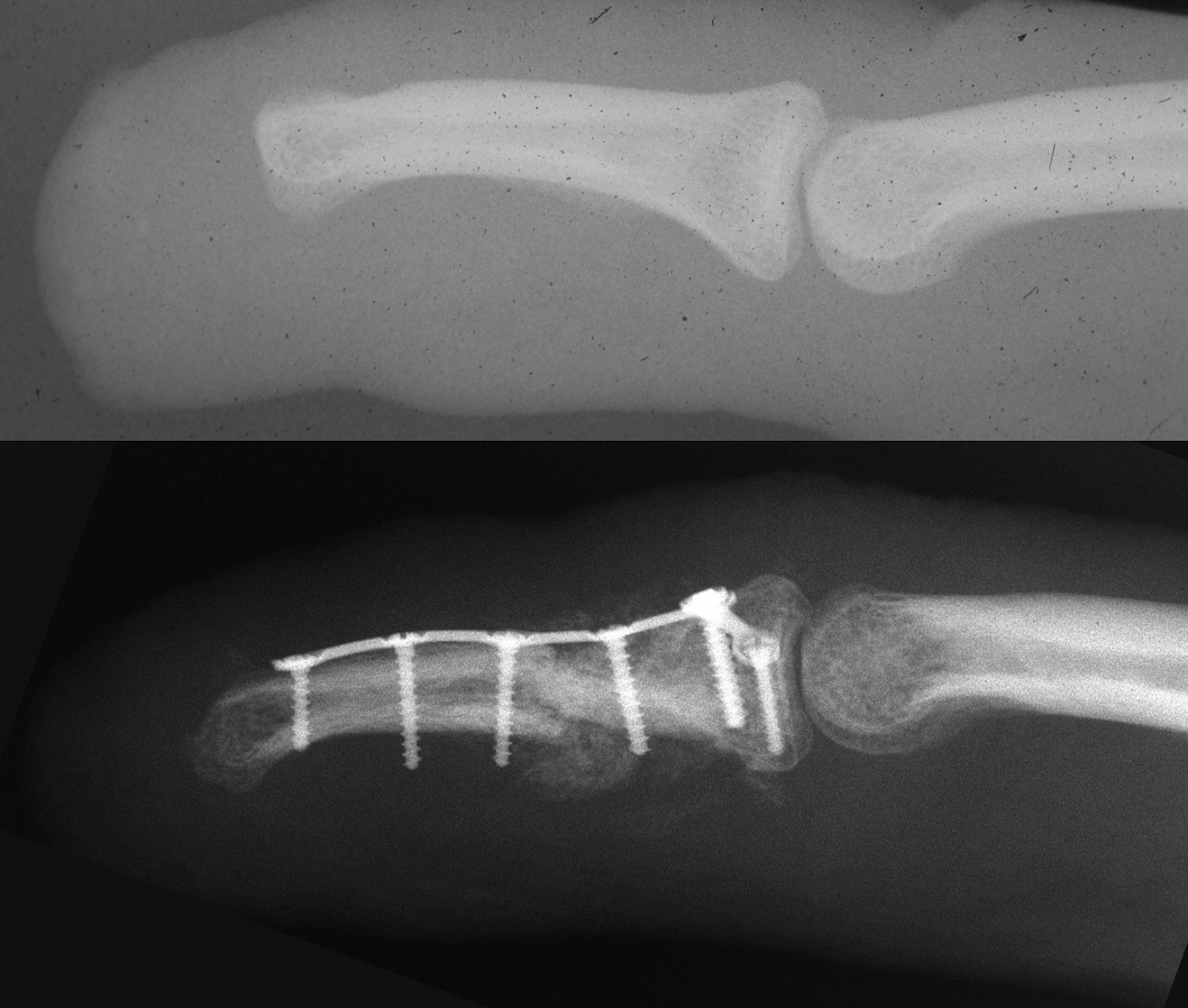

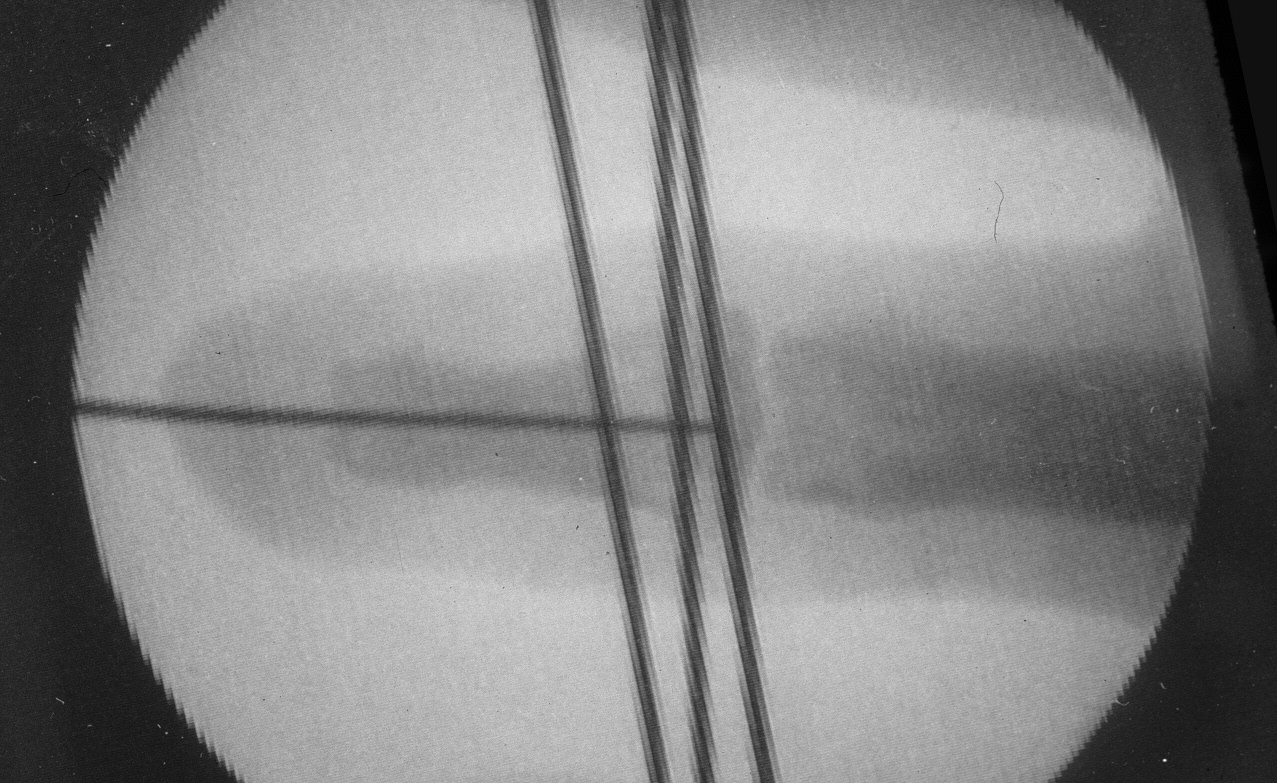

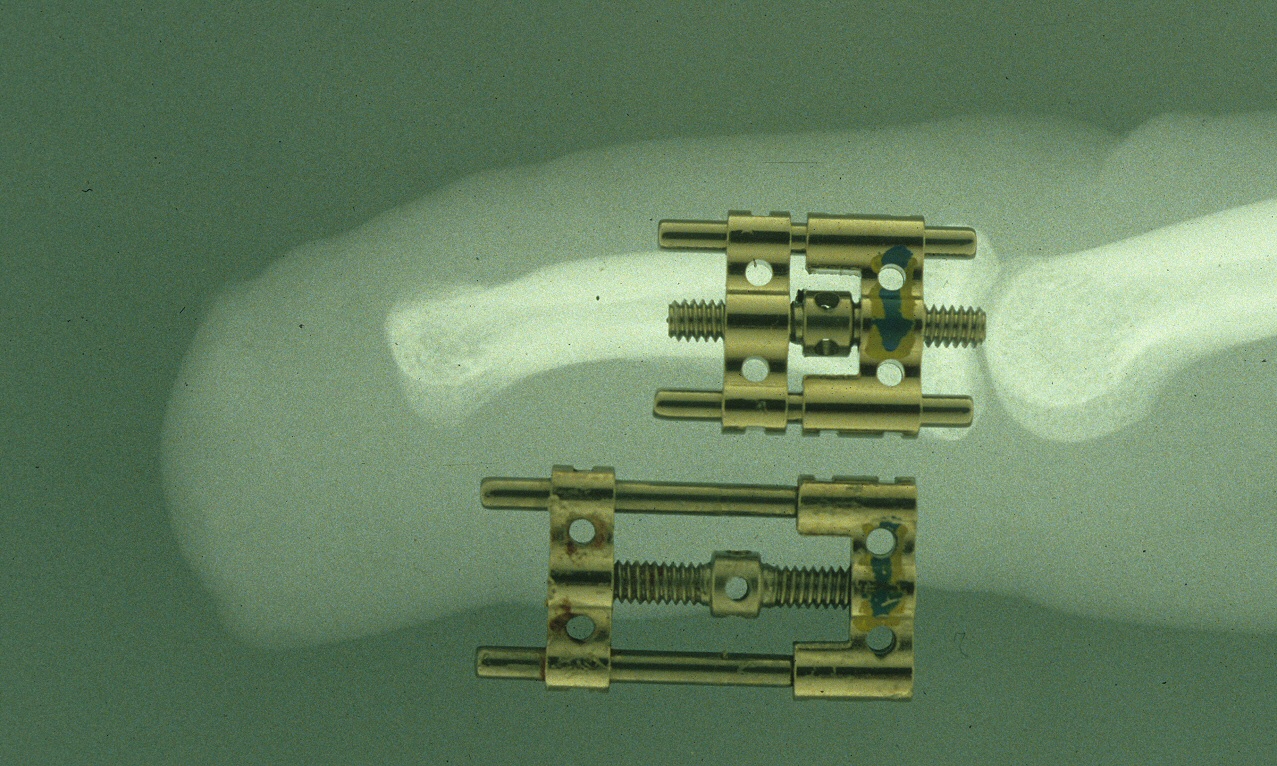

Case 2. Middle phalanx lengthening with proximal metaphyseal osteotomy, distraction and bone graft:

Image Image

Image Image

Image Image

Image Image

Image Image
